SYMPTOMS
When you boot a system, it boots successfully into iPXE land but you then see a message stating that there are no available deployments for the device.
TROUBLESHOOTING STEPS
Firstly, run the 2PXE Service in 'interactive' mode. Go to the 2PXE service installation folder, find the executable (2Pint.2pxe.Service.exe), right click and select 'Run as Administrator' This will then output debug information in real-time.
Then, boot the system that you are troubleshooting.

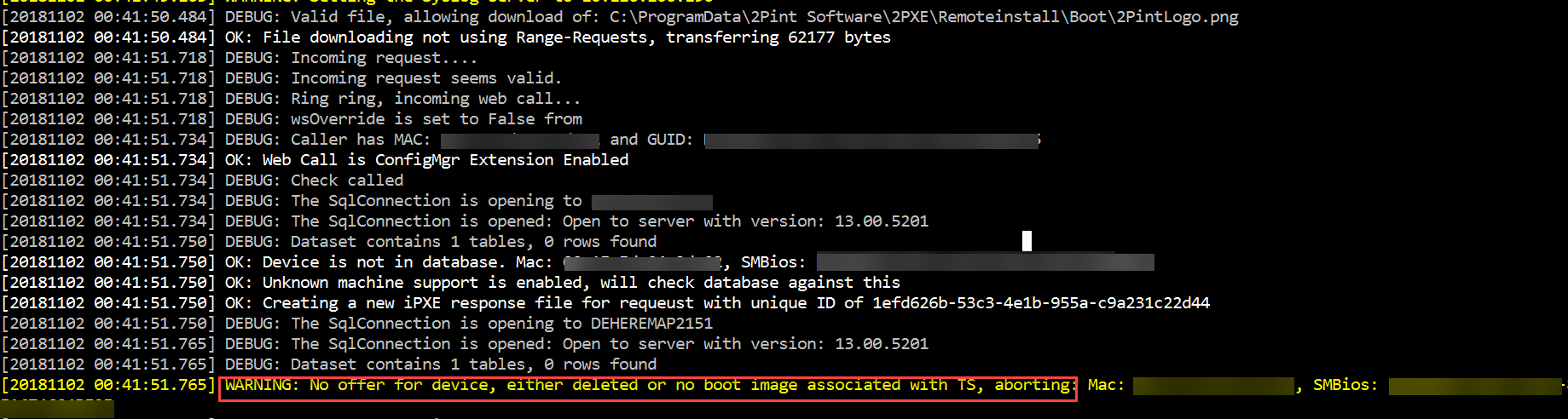

You should see something similar to the below image:
This is a fairly common troubleshooting issue, so here are some things to check and some SQL that you can run which will return the available deployments based on the MAC Address etc.
- Is the Boot Image distributed to the Distribution Point where 2PXE is installed?
- Is the Task Sequence Deployment set to be available to 'Media And PXE' clients?
- Is all referenced content for the Task Sequence distributed to an accessible DP?
- Boundaries - do you have DP affinity set that might exclude the system from this DP?
If you have checked all of the above and it's still returning nothing - you can run the SQL Query below. It's basically the same as SCCM runs when you boot a system
Just insert the correct MAC and SMBios GUID, which you can get from the interactive 2PXE session (above)
--#SQL QUERY TO RETURN AVAILABLE DEPLOYMENTS FOR A DEVICE
declare @ItemKey int = 2046820353,
@UnknownItemKeyint int = 2046820353,
@SMBIOSGUID nvarchar(38) = 'D8176A62-19E9-40C4-84FC-3F68AF37B598',
@MACAddress nvarchar(38) ='00:11:22:33:44:55',
@DPName nvarchar(255) = 'MYDP.MYDOMAIN.LOCAL',
@Architecture int = 1 -- Architecture of 1 means any, 0 means 32-bit, 9 means 64-bit
@UnknownItemKeyint int = 2046820353,
@SMBIOSGUID nvarchar(38) = 'D8176A62-19E9-40C4-84FC-3F68AF37B598',
@MACAddress nvarchar(38) ='00:11:22:33:44:55',
@DPName nvarchar(255) = 'MYDP.MYDOMAIN.LOCAL',
@Architecture int = 1 -- Architecture of 1 means any, 0 means 32-bit, 9 means 64-bit
BEGIN
SET NOCOUNT ON
declare @SMBIOS nvarchar(38)
declare @MAC nvarchar(64)
DECLARE @CurrentTimeInUTC datetime
SET @CurrentTimeInUTC = getutcdate()
set @SMBIOS = @SMBIOSGUID
set @MAC = @MACAddress
IF (CHARINDEX ('_', @SMBIOSGUID) > 0 OR CHARINDEX ('%', @SMBIOSGUID) > 0)
BEGIN
IF (EXISTS (SELECT SMBIOS_GUID FROM CommonSMBIOS_GUIDs WHERE @SMBIOSGUID LIKE CommonSMBIOS_GUIDs.SMBIOS_GUID))
SET @SMBIOS = 'Common'
END
ELSE
BEGIN
IF (EXISTS (SELECT SMBIOS_GUID FROM CommonSMBIOS_GUIDs WHERE @SMBIOSGUID = CommonSMBIOS_GUIDs.SMBIOS_GUID))
SET @SMBIOS = 'Common'
END
IF (CHARINDEX ('_', @MACAddress) > 0 OR CHARINDEX ('%', @MACAddress) > 0)
BEGIN
IF (EXISTS (SELECT MACAddress FROM CommonMACAddresses WHERE @MACAddress LIKE CommonMACAddresses.MACAddress))
SET @MAC = 'Common'
END
ELSE
BEGIN
IF (EXISTS (SELECT MACAddress FROM CommonMACAddresses WHERE @MACAddress = CommonMACAddresses.MACAddress))
SET @MAC = 'Common'
END
SELECT DISTINCT MACAddress, SMBIOS_GUID, SMS_UniqueIdentifier0, LastPXEAdvertisementID, LastPXEAdvertisementTime,
OfferID, OfferIDTime, PkgID, PackageVersion, PackagePath, BootImageID, Mandatory, Known,
PresentTimeEnabled, ExpirationTimeEnabled, PresentTimeInUTC, ExpirationTimeInUTC
FROM (
SELECT @MACAddress AS 'MACAddress',
@SMBIOSGUID AS 'SMBIOS_GUID',
xref.GUID AS 'SMS_UniqueIdentifier0',
'' AS 'LastPXEAdvertisementID',
'' AS 'LastPXEAdvertisementTime',
sp.OfferID AS 'OfferID',
po.PresentTime AS 'OfferIDTime',
po.PkgID AS 'PkgID',
tspkg.Version AS 'PackageVersion',
cdp.URL AS 'PackagePath',
tspkg.BootImageID AS 'BootImageID',
CASE
WHEN ((po.OfferFlags & 0x00000620) != 0) THEN 1 -- 0x620 = AP_ON_LOGON | AP_ON_LOGOFF | AP_ASAP
WHEN (ISNULL(po.MandatorySched,'')!= '') THEN 1
ELSE 0 END
AS 'Mandatory',
CASE
WHEN (EXISTS (select System_DISC.ItemKey from System_DISC where
System_DISC.ItemKey = xref.MachineID AND
ISNULL(System_DISC.Decommissioned0,0) != 0 AND
ISNULL(System_DISC.Obsolete0,0) != 0 AND
ISNULL(System_DISC.Unknown0,0) != 0))
THEN 0
WHEN (xref.MachineID = @ItemKey) THEN 1
ELSE 0 END
AS 'Known',
CASE WHEN ((po.TimeEnableFlag & 0x0001) != 0) THEN 1 ELSE 0 END -- PROGOFFER_ENABLE_PRESENT = 0x0001
AS 'PresentTimeEnabled',
CASE WHEN ((po.TimeEnableFlag & 0x0002) != 0) THEN 1 ELSE 0 END -- PROGOFFER_ENABLE_EXPIRATION = 0x0002
AS 'ExpirationTimeEnabled',
CASE WHEN ((po.TimeEnableFlag & 0x0100) != 0) THEN po.PresentTime ELSE dbo.fnConvertLocalToUTC(po.PresentTime) END -- PROGOFFER_GMT_PRESENT = 0x0100
AS 'PresentTimeInUTC',
CASE WHEN ((po.TimeEnableFlag & 0x0200) != 0) THEN po.ExpirationTime ELSE dbo.fnConvertLocalToUTC(po.ExpirationTime) END -- PROGOFFER_GMT_EXPIRATION = 0x0200
AS 'ExpirationTimeInUTC'
FROM MachineIdGroupXRef xref
JOIN ResPolicyMap AS rpm
ON xref.MachineID = rpm.MachineID
JOIN SoftwarePolicy AS sp
ON (rpm.PADBID = sp.PADBID AND rpm.IsTombstoned != 1)
JOIN ProgramOffers AS po
ON sp.OfferID = po.OfferID AND po.[Action] <> 3
JOIN vSMS_TaskSequencePackage AS tspkg
ON (tspkg.PkgID = sp.PkgID AND (ISNULL(tspkg.BootImageID,'')!= ''))
JOIN SMSPackages
ON (tspkg.BootImageID = SMSPackages.PkgID)
JOIN PkgPrograms as pp
ON (tspkg.PkgID = pp.PkgID AND (pp.ProgramFlags & 4096) = 0 AND pp.[Action] <> 3) -- 4096 = disabled
JOIN ContentDPMap AS cdp
ON (cdp.ContentID = tspkg.BootImageID AND cdp.ServerName = @DPName)
WHERE xref.MachineID IN (@ItemKey) AND
(@Architecture = 1 OR SMSPackages.Architecture = @Architecture) AND -- Architecture of 1 means any, 0 means 32-bit, 9 means 64-bit
((CASE WHEN ((po.OfferFlags & 0x00000620) != 0) THEN 1 -- 0x620 = AP_ON_LOGON | AP_ON_LOGOFF | AP_ASAP
WHEN (ISNULL(po.MandatorySched,'')!= '') THEN 1
ELSE 0 END) = 0 OR
(NOT EXISTS (select * from LastPXEAdvertisement as lpa where (lpa.MAC_Addresses = @MAC OR lpa.SMBIOS_GUID = @SMBIOS) AND lpa.LastPXEAdvertisementID = sp.OfferID))) AND
(po.OfferFlags & 0x00040000) != 0 -- 0x00040000 = AP_ENABLE_TS_FROM_CD_AND_PXE
) AS X
WHERE ((PresentTimeEnabled = 0 ) OR (@CurrentTimeInUTC >= PresentTimeInUTC)) AND
((ExpirationTimeEnabled = 0) OR (@CurrentTimeInUTC <= ExpirationTimeInUTC))
ORDER BY Known DESC, Mandatory DESC, OfferID DESC
END
SET NOCOUNT ON
declare @SMBIOS nvarchar(38)
declare @MAC nvarchar(64)
DECLARE @CurrentTimeInUTC datetime
SET @CurrentTimeInUTC = getutcdate()
set @SMBIOS = @SMBIOSGUID
set @MAC = @MACAddress
IF (CHARINDEX ('_', @SMBIOSGUID) > 0 OR CHARINDEX ('%', @SMBIOSGUID) > 0)
BEGIN
IF (EXISTS (SELECT SMBIOS_GUID FROM CommonSMBIOS_GUIDs WHERE @SMBIOSGUID LIKE CommonSMBIOS_GUIDs.SMBIOS_GUID))
SET @SMBIOS = 'Common'
END
ELSE
BEGIN
IF (EXISTS (SELECT SMBIOS_GUID FROM CommonSMBIOS_GUIDs WHERE @SMBIOSGUID = CommonSMBIOS_GUIDs.SMBIOS_GUID))
SET @SMBIOS = 'Common'
END
IF (CHARINDEX ('_', @MACAddress) > 0 OR CHARINDEX ('%', @MACAddress) > 0)
BEGIN
IF (EXISTS (SELECT MACAddress FROM CommonMACAddresses WHERE @MACAddress LIKE CommonMACAddresses.MACAddress))
SET @MAC = 'Common'
END
ELSE
BEGIN
IF (EXISTS (SELECT MACAddress FROM CommonMACAddresses WHERE @MACAddress = CommonMACAddresses.MACAddress))
SET @MAC = 'Common'
END
SELECT DISTINCT MACAddress, SMBIOS_GUID, SMS_UniqueIdentifier0, LastPXEAdvertisementID, LastPXEAdvertisementTime,
OfferID, OfferIDTime, PkgID, PackageVersion, PackagePath, BootImageID, Mandatory, Known,
PresentTimeEnabled, ExpirationTimeEnabled, PresentTimeInUTC, ExpirationTimeInUTC
FROM (
SELECT @MACAddress AS 'MACAddress',
@SMBIOSGUID AS 'SMBIOS_GUID',
xref.GUID AS 'SMS_UniqueIdentifier0',
'' AS 'LastPXEAdvertisementID',
'' AS 'LastPXEAdvertisementTime',
sp.OfferID AS 'OfferID',
po.PresentTime AS 'OfferIDTime',
po.PkgID AS 'PkgID',
tspkg.Version AS 'PackageVersion',
cdp.URL AS 'PackagePath',
tspkg.BootImageID AS 'BootImageID',
CASE
WHEN ((po.OfferFlags & 0x00000620) != 0) THEN 1 -- 0x620 = AP_ON_LOGON | AP_ON_LOGOFF | AP_ASAP
WHEN (ISNULL(po.MandatorySched,'')!= '') THEN 1
ELSE 0 END
AS 'Mandatory',
CASE
WHEN (EXISTS (select System_DISC.ItemKey from System_DISC where
System_DISC.ItemKey = xref.MachineID AND
ISNULL(System_DISC.Decommissioned0,0) != 0 AND
ISNULL(System_DISC.Obsolete0,0) != 0 AND
ISNULL(System_DISC.Unknown0,0) != 0))
THEN 0
WHEN (xref.MachineID = @ItemKey) THEN 1
ELSE 0 END
AS 'Known',
CASE WHEN ((po.TimeEnableFlag & 0x0001) != 0) THEN 1 ELSE 0 END -- PROGOFFER_ENABLE_PRESENT = 0x0001
AS 'PresentTimeEnabled',
CASE WHEN ((po.TimeEnableFlag & 0x0002) != 0) THEN 1 ELSE 0 END -- PROGOFFER_ENABLE_EXPIRATION = 0x0002
AS 'ExpirationTimeEnabled',
CASE WHEN ((po.TimeEnableFlag & 0x0100) != 0) THEN po.PresentTime ELSE dbo.fnConvertLocalToUTC(po.PresentTime) END -- PROGOFFER_GMT_PRESENT = 0x0100
AS 'PresentTimeInUTC',
CASE WHEN ((po.TimeEnableFlag & 0x0200) != 0) THEN po.ExpirationTime ELSE dbo.fnConvertLocalToUTC(po.ExpirationTime) END -- PROGOFFER_GMT_EXPIRATION = 0x0200
AS 'ExpirationTimeInUTC'
FROM MachineIdGroupXRef xref
JOIN ResPolicyMap AS rpm
ON xref.MachineID = rpm.MachineID
JOIN SoftwarePolicy AS sp
ON (rpm.PADBID = sp.PADBID AND rpm.IsTombstoned != 1)
JOIN ProgramOffers AS po
ON sp.OfferID = po.OfferID AND po.[Action] <> 3
JOIN vSMS_TaskSequencePackage AS tspkg
ON (tspkg.PkgID = sp.PkgID AND (ISNULL(tspkg.BootImageID,'')!= ''))
JOIN SMSPackages
ON (tspkg.BootImageID = SMSPackages.PkgID)
JOIN PkgPrograms as pp
ON (tspkg.PkgID = pp.PkgID AND (pp.ProgramFlags & 4096) = 0 AND pp.[Action] <> 3) -- 4096 = disabled
JOIN ContentDPMap AS cdp
ON (cdp.ContentID = tspkg.BootImageID AND cdp.ServerName = @DPName)
WHERE xref.MachineID IN (@ItemKey) AND
(@Architecture = 1 OR SMSPackages.Architecture = @Architecture) AND -- Architecture of 1 means any, 0 means 32-bit, 9 means 64-bit
((CASE WHEN ((po.OfferFlags & 0x00000620) != 0) THEN 1 -- 0x620 = AP_ON_LOGON | AP_ON_LOGOFF | AP_ASAP
WHEN (ISNULL(po.MandatorySched,'')!= '') THEN 1
ELSE 0 END) = 0 OR
(NOT EXISTS (select * from LastPXEAdvertisement as lpa where (lpa.MAC_Addresses = @MAC OR lpa.SMBIOS_GUID = @SMBIOS) AND lpa.LastPXEAdvertisementID = sp.OfferID))) AND
(po.OfferFlags & 0x00040000) != 0 -- 0x00040000 = AP_ENABLE_TS_FROM_CD_AND_PXE
) AS X
WHERE ((PresentTimeEnabled = 0 ) OR (@CurrentTimeInUTC >= PresentTimeInUTC)) AND
((ExpirationTimeEnabled = 0) OR (@CurrentTimeInUTC <= ExpirationTimeInUTC))
ORDER BY Known DESC, Mandatory DESC, OfferID DESC
END
